Securing Dynamic Data 4 (Replay)

This is an updated version of the series Securing Dynamic Data Preview 4 from July 2009 here I playnto streamline the class libraries for the RTM version of Dynamic Data 4  and Visual Studio 2010.

This version is mostly the same as in Part 1 except I’ve done a great deal of refactoring and so I will list everything again here. The main difference is that there are now no user controls to replace the Delete buttons. Also I have changed the permissions system to be restrictive by default at Table level i.e. you must have a permission set on every table for the table to be seen, but a Column level you deny columns you don’t want to be seen.

Permissions Enums

The TableActions (renamed from TableDeny) enum Listing 1 has had a CombinedActions class Listing 2 added that combine sets of TableActions into logical security groups (i.e. ReadOnly equates to combining TablesActions Details and List to give an more descriptive was of assigning rights to a security Role).

/// <summary>
/// Table permissions enum, allows different
/// levels of permission to be set for each
/// table on a per role bassis.
/// </summary>
[Flags]
public enum TableActions
{
    /// <summary>
    /// Default no permissions
    /// </summary>
    None = 0x00,
    /// <summary>
    /// Details page
    /// </summary>
    Details = 0x01,
    /// <summary>
    /// List page
    /// </summary>
    List = 0x02,
    /// <summary>
    /// Edit page
    /// </summary>
    Edit = 0x04,
    /// <summary>
    /// Insert page
    /// </summary>
    Insert = 0x08,
    /// <summary>
    /// Delete operations
    /// </summary>
    Delete = 0x10,
}

Listing 1 – TableActions

/// <summary>
/// Combines Table permissions enums
/// into logical security groups
/// i.e. ReadOnly combines TableActions
/// Details and List
/// </summary>
public static class CombinedActions
{
    /// <summary>
    /// Read Only access
    /// TableActions.Details or
    /// TableActions.List
    /// </summary>
    public const TableActions ReadOnly =
        TableActions.Details |
        TableActions.List;
    /// <summary>
    /// Read and Write access
    /// TableActions.Details or
    /// TableActions.List or
    /// TableActions.Edit
    /// </summary>
    public const TableActions ReadWrite =
        TableActions.Details |
        TableActions.List |
        TableActions.Edit;
    /// <summary>
    /// Read Insert access
    /// TableActions.Details or
    /// TableActions.List or
    /// TableActions.Insert
    ///
    /// </summary>
    public const TableActions ReadInsert =
        TableActions.Details |
        TableActions.List |
        TableActions.Insert;
    /// <summary>
    /// Read Insert and Delete access
    /// TableActions.Details or
    /// TableActions.List or
    /// TableActions.Insert or
    /// TableActions.Delete)
    /// </summary>
    public const TableActions ReadInsertDelete =
        TableActions.Details |
        TableActions.List |
        TableActions.Insert |
        TableActions.Delete;
    /// <summary>
    /// Read and Write access
    /// TableActions.Details or
    /// TableActions.List or
    /// TableActions.Edit or
    /// TableActions.Insert)
    /// </summary>
    public const TableActions ReadWriteInsert =
        TableActions.Details |
        TableActions.List |
        TableActions.Edit |
        TableActions.Insert;
    /// <summary>
    /// Full access
    /// TableActions.Delete or
    /// TableActions.Details or
    /// TableActions.Edit or
    /// TableActions.Insert or
    /// TableActions.List)
    /// </summary>
    public const TableActions Full =
        TableActions.Delete |
        TableActions.Details |
        TableActions.Edit |
        TableActions.Insert |
        TableActions.List;
}

Listing 2 – CombinedActions

ColumnActions Listing 3  are used to deny either Write or Read access.

/// <summary>
/// Actions a Column can
/// have assigned to itself.
/// </summary>
[Flags]
public enum ColumnActions
{
    /// <summary>
    /// Action on a column/property
    /// </summary>
    DenyRead = 1,
    /// <summary>
    /// Action on a column/property
    /// </summary>
    DenyWrite = 2,
}

Listing 3 – ColumnActions

Secure Dynamic Data Route Handler

The SecureDynamicDataRouteHandler has changed very little since the original article all I have added is the catch all tp.Permission == CombinedActions.Full in the if statement to streamline the code.

/// <summary>
/// The SecureDynamicDataRouteHandler enables the
/// user to access a table based on the following:
/// the Roles and TableDeny values assigned to
/// the SecureTableAttribute.
/// </summary>
public class SecureDynamicDataRouteHandler : DynamicDataRouteHandler
{
    /// <summary>
    /// Creates the handler.
    /// </summary>
    /// <param name="route">The route.</param>
    /// <param name="table">The table.</param>
    /// <param name="action">The action.</param>
    /// <returns>An IHttpHandler</returns>
    public override IHttpHandler CreateHandler(
        DynamicDataRoute route,
        MetaTable table,
        string action)
    {
        var httpContext = HttpContext.Current;
        if (httpContext != null && httpContext.User != null)
        {
            var usersRoles = Roles.GetRolesForUser(httpContext.User.Identity.Name);
            var tablePermissions = table.Attributes.OfType<SecureTableAttribute>();

            // if no permission exist then full access is granted
            if (tablePermissions.Count() == 0)
                return null;

            foreach (var tp in tablePermissions)
            {
                if (tp.HasAnyRole(usersRoles))
                {
                    // if no action is allowed return no route
                    var tpAction = tp.Permission.ToString().Split(new char[] { ',', ' ' },
                        StringSplitOptions.RemoveEmptyEntries);

                    if (tp.Permission == CombinedActions.Full || tpAction.Contains(action))
                        return base.CreateHandler(route, table, action);
                }
            }
        }
        return null;
    }
}

Listing 4 – Secure Dynamic Data Route Handler

This then covers all Edit, Insert and Details actions but not Delete.

Delete Actions

In the previous article we had a User Control that handled securing the Delete action, here we have a SecureLinkButton. All we do is override the Render method and test to see if the button is disabled via the users security roles.

/// <summary>
/// Secures the link button when used for delete actions
/// </summary>
public class SecureLinkButton : LinkButton
{
    private const String DISABLED_NAMES = "SecureLinkButtonDeleteCommandNames";
    private String[] delete = new String[] { "delete" };

    /// <summary>
    /// Raises the <see cref="E:System.Web.UI.Control.Init"/> event.
    /// </summary>
    /// <param name="e">
    /// An <see cref="T:System.EventArgs"/>
    /// object that contains the event data.
    /// </param>
    protected override void OnInit(EventArgs e)
    {
        if (ConfigurationManager.AppSettings.AllKeys.Contains(DISABLED_NAMES))
            delete = ConfigurationManager.AppSettings[DISABLED_NAMES]
                .ToLower()
                .Split(new char[] { ',' }, StringSplitOptions.RemoveEmptyEntries);

        base.OnInit(e);
    }

    /// <summary>
    /// Renders the control to the specified HTML writer.
    /// </summary>
    /// <param name="writer">
    /// The <see cref="T:System.Web.UI.HtmlTextWriter"/>
    /// object that receives the control content.
    /// </param>
    protected override void Render(HtmlTextWriter writer)
    {
        if (!IsDisabled())
            base.Render(writer);
        else
            writer.Write(String.Format("<a>{0}</a>", Text));
    }

    /// <summary>
    /// Determines whether this instance is disabled.
    /// </summary>
    /// <returns>
    /// 	<c>true</c> if this instance is
    /// 	disabled; otherwise, <c>false</c>.
    /// </returns>
    private Boolean IsDisabled()
    {
        if (!delete.Contains(CommandName.ToLower()))
            return false;

        // get restrictions for the current
        // users access to this table
        var table = DynamicDataRouteHandler.GetRequestMetaTable(Context);
        var usersRoles = Roles.GetRolesForUser();
        var tableRestrictions = table.Attributes.OfType<SecureTableAttribute>();

        // restrictive permissions
        if (tableRestrictions.Count() == 0)
            return true;

        foreach (var tp in tableRestrictions)
        {
            // the LinkButton is considered disabled if delete is denied.
            var action = CommandName.ToEnum<TableActions>();
            if (tp.HasAnyRole(usersRoles) && (tp.Actions & action) == action)
                return false;
        }
        return true;
    }
}

Listing 5 – Secure Link Button

In more detail the IsDisabled method check to see if the LinkButtons CommandName is the same as the the “SecureLinkButtonDeleteCommandNames” application setting set in the web.config, note the default is “delete”. And then if the user does not have Delete permission then the button is disabled.

So how do we use this SecureLinkButton we add a tagMapping in the web.config file see Listing 6.

<configuration>
    <system.web>
        <pages>
            <controls>
                <!-- custom tag assignments -->
                <add tagPrefix="asp" namespace="NotAClue.Web.DynamicData"
                    assembly="NotAClue.Web.DynamicData" />
            </controls>
            <!-- custom tag mappings -->
            <tagMapping>
                <add tagType="System.Web.UI.WebControls.LinkButton"
                    mappedTagType="NotAClue.Web.DynamicData.SecureLinkButton" />
            </tagMapping>
        </pages>
    </system.web>
</configuration>

Listing 6 – Tag Mapping in web.config

This means that our SecureLinkButton will replace the LinkButton throughout the site, however if you do not like this you can just rename each delete <asp:LinkButton to <asp:SecureLinkButton and then you will get the same effect and not add the tagMapping section to the web.config.

The Secure Meta Model

Here the two main parts are the SecureMetaTable and the three MetaColumn types (SecureMetaColumn, SecureMetaForeignKeyColumn and SecureMetaChildrenColumn)

SecureMetaTable

In the SecureMetaTable we override the GetScaffoldColumns method and filter the column list to where columns do not have a DenyRead action applied for any of the current users security roles.

SecureMetaColumn, SecureMetaForeignKeyColumn and SecureMetaChildrenColumn

With these types we do have to repeat ourselves a little as we override the IsReadOnly property to check to see if the column has a DenyWrite action applied for one of the users roles.

Note: Thanks to the ASP.NET team for listening and making this property virtual.

There is one issue I found and that is the default FieldTemplateFactory caches the DynamicControl model (ReadOnly, Edit and Insert) I did toy with adding the relevant code the default EntityTemplates see Listing 7, but decided again it.

protected void DynamicControl_Init(object sender, EventArgs e)
{
    DynamicControl dynamicControl = (DynamicControl)sender;
    dynamicControl.DataField = currentColumn.Name;

    // test for read-only column
    if (currentColumn.IsReadOnly)
        dynamicControl.Mode = DataBoundControlMode.ReadOnly;
}

Listing 7 – adding control mode code to the default EntityTemplates

Instead I decided to use a custom FieldTemplateFactory see Listing 8

public class SecureFieldTemplateFactory : FieldTemplateFactory
{
    public override IFieldTemplate CreateFieldTemplate(MetaColumn column,
        DataBoundControlMode mode,
        string uiHint)
    {
        // code to fix caching issue
        if (column.IsReadOnly)
            mode = DataBoundControlMode.ReadOnly;

        return base.CreateFieldTemplate(column, mode, uiHint);
    }
}

Listing 8 – Secure Field Template Factory

The code here is simple we just check to see if the column is read-only (remembering that the SecureMetaColumns are already checking this for us) then set the Mode to DataBoundControlMode.ReadOnly. This nicely keeps our code DRY.

Secure Table and Column Attributes

These are essentially unchanged from the previous series of articles with just a little refactoring to make the code more readable.

!Important: For code see sample at end of article.

Putting It Together

Nearly all the work to get Secure Dynamic Data working is done simply in the Global.asax file.

Note: There are some changes you need to make to add Login etc but that is standard ASP.Net and specific to Dynamic Data.

Figure 1 – Adding Security to Dynamic Data

Also you need the tag mapping from Listing 6, there are some more bits we need to do but they are standard ASP.Net Security, so let’s get that done next.

!Important: To use this as we currently are you will need SQL Server 200x Express installed otherwise you will need to add a specific connection string and use Creating the Application Services Database for SQL Server to make your ASPNETDB database for membership and roles.

<authentication mode="Forms">
    <forms loginUrl="~/Login.aspx" protection="All" defaultUrl="~/Default.aspx" path="/"/>
</authentication>
<authorization>
    <deny users="?"/>
</authorization>
<membership>
    <providers>
        <remove name="AspNetSqlMembershipProvider"/>
        <add name="AspNetSqlMembershipProvider"
            type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a
            connectionStringName="LocalSqlServer"
            enablePasswordRetrieval="false"
            enablePasswordReset="true"
            requiresQuestionAndAnswer="true"
            applicationName="/"
            requiresUniqueEmail="false"
            passwordFormat="Hashed"
            maxInvalidPasswordAttempts="5"
            minRequiredPasswordLength="7"
            minRequiredNonalphanumericCharacters="0"
            passwordAttemptWindow="10"
            passwordStrengthRegularExpression=""/>
    </providers>
</membership>
<roleManager enabled="true" />

Listing 9 – Adding standard ASP.Net security to web.config

<location path="Site.css">
    <system.web>
        <authorization>
            <allow users="*"/>
        </authorization>
    </system.web>
</location>

Listing 10 – Allowing access to style sheet.

With SQL Server 200x Express edition installed you will get the ASPNETDB created automatically.

Note: I generally do this to create the ASPNETDB then move it to where I want it and setup a specific connection string. Also you can use the ASP.Net Configuration utility to create users and roles.

Figure 1 - ASP.Net Configuration Utility

Downloads

I think that is about it, so here is the download it contains three projects the Class Library and two sample projects one Entity Framework and one Linq to SQL. Have fun.

Part 3 – A Cascading Hierarchical Field Template & Filter for Dynamic Data

• Part 1 – The Read-Only Hierarchical Field Template
• Part 2 – The Edit Hierarchical Field Template
• Part 3 – The Basic Hierarchical Filter

This would have been the final part of the series of articles, however I realised that we will need a final article that covers the more complex action of the CascadingHierarchicalFilter, this where at each level of selection we filter the list.

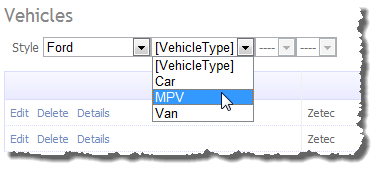

Figure 1 – Cascading Hierarchical Filter.

e.g. in Figure 1 the CascadingHierarchicalFilter (the basic version) no selection occurs until we select a value from the final list control, however in the complex CascadingHierarchicalFilter we will filter at each level and so we will hold that over until we have completed the basic version of the CascadingHierarchicalFilter.

And so to the basic version, first we will need a starting place so copy the ForeignKey filter and rename it to CascadingHierarchical and the class name to CascadingHierarchicalFilter. Next we remove the content of the aspx page so it looks like Listing 1.

<%@ Control
    Language="C#"
    CodeBehind="CascadeHierarchical.ascx.cs"
    Inherits="CascadeHierarchicalFieldTemplate.CascadeHierarchicalFilter" %>

Listing 1 – CascadingHierarchical.aspx page

Then we start on the code behind by adding our member variables, adjusting the two properties and replacing the default Page_Init with ours, which is very similar to the Edit templates Page_Init see Listing 2.

#region member variables
private const string NullValueString = "[null]";
// hold the current data context to access the model
private object context;
// hold the list of filters
private SortedList<int, HierachicalListControl> filters = new SortedList<int, HierachicalListControl>();
// hold the attribute
private CascadeHierarchicalAttribute cascadeHierarchicalAttribute;
#endregion

private new MetaForeignKeyColumn Column
{
    get { return (MetaForeignKeyColumn)base.Column; }
}

public override Control FilterControl
{
    get
    {
        if (filters[0] != null && filters[0].ListControl != null)
            return filters[0].ListControl;
        else
            return null;
    }
}

protected void Page_Init(object sender, EventArgs e)
{
    //if (!Column.IsRequired)
    // check we have a cascade hierarchical attribute if not throw error
    cascadeHierarchicalAttribute = Column.GetAttribute<CascadeHierarchicalAttribute>();
    if (cascadeHierarchicalAttribute == null)
        throw new InvalidOperationException("Was expecting a CascadeFilterAttribute.");

    // check we have correct column type if not throw error
    if (!(Column is MetaForeignKeyColumn))
        throw new InvalidOperationException(String.Format("Column {0} must be a foreign key column navigation property", Column.Name));

    // get current context
    context = Column.Table.CreateContext();

    // get hierarchical cascade columns
    var parentColumns = new SortedList<int, String>();
    for (int i = 0; i < cascadeHierarchicalAttribute.Parameters.Length; i++)
        parentColumns.Add(i, cascadeHierarchicalAttribute.Parameters[i]);

    // add extra column to represent this column itself
    parentColumns.Add(cascadeHierarchicalAttribute.Parameters.Length, String.Empty);

    //get current column into a local variable
    MetaForeignKeyColumn currentColumn = Column;

    // setup list of filter definitions
    for (int i = 0; i < parentColumns.Count; i++)
    {
        // get parent column name
        var parentColumnName = parentColumns[i];

        // create dropdown list
        var ddl = new DropDownList()
        {
            ID = String.Format("ListControl{0}", i),
            Enabled = false,
            AutoPostBack = true
        };

        // create filter
        var filter = new HierachicalListControl(ddl) { Column = currentColumn };

        // check for last parent filter
        if (!String.IsNullOrEmpty(parentColumnName))
        {
            // set parent column from parent table
            filter.ParentColumn = (MetaForeignKeyColumn)currentColumn.ParentTable.GetColumn(parentColumnName);

            // set current column to parent column
            currentColumn = filter.ParentColumn;
        }
        else
        {
            // this is the last parent and has
            // no parent itself so set to null
            filter.ParentColumn = null;
            currentColumn = null;
        }
        // add filter to list of filters
        filters.Add(i, filter);
    }

    // add dropdown list to page in correct order 2, 1, 0
    // last parent, parent<N>, child
    for (int i = parentColumns.Count - 1; i >= 0; i--)
    {
        // setup dropdown list
        filters[i].ListControl.Items.Clear();
        filters[i].ListControl.Items.Add(new ListItem("------", String.Empty));

        // add parent list controls event handler
        if (i > 0)
            filters[i].ListControl.SelectedIndexChanged += ListControls_SelectedIndexChanged;
        else
            filters[i].ListControl.SelectedIndexChanged += ListControl0_SelectedIndexChanged;

        // add control to place holder
        this.Controls.Add(filters[i].ListControl);
    }

    if (DefaultValue != null)
        PopulateAllListControls(DefaultValue);
    else
    {
        // fill last parent filter
        var lastParentIndex = filters.Count - 1;
        var parentTable = filters[lastParentIndex].Column.ParentTable;
        var parentQuery = parentTable.GetQuery(context);

        // set next descendant list control
        PopulateListControl(lastParentIndex, parentQuery);
    }
}

Listing 2 – Member variables and Page_Init

Now we add the following Listings 3 & 4 these are virtually the same as from the Edit template and so I am thinking in the next revision they may all be removed to the class library.

/// <summary>
/// Sets the default values.
/// </summary>
/// <param name="fieldValue">The value.</param>
private void PopulateAllListControls(object fieldValue)
{
    var displayStrings = new SortedList<int, String>();

    #region Get list of propert values
    // get property values
    var propertyValues = new SortedList<int, Object>();
    propertyValues.Add(0, fieldValue);
    for (int i = 0; i < filters.Count - 1; i++)
    {
        var parentName = filters[i].ParentColumn.Name;
        object pv = propertyValues[i].GetPropertyValue(parentName);
        propertyValues.Add(i + 1, pv);
    }
    #endregion

    // stating at the first filter and work way up to the last filter
    for (int i = 0; i < filters.Count; i++)
    {
        var parentTable = filters[i].Column.ParentTable;
        var parentQuery = parentTable.GetQuery(context);
        IQueryable listItemsQuery;
        if (i == cascadeHierarchicalAttribute.Parameters.Length)
        {
            listItemsQuery = parentQuery.GetQueryOrdered(parentTable);
        }
        else
        {
            var pcol = filters[i + 1].Column;
            var selectedValue = filters[i].ParentColumn.GetForeignKeyString(propertyValues[i]);
            listItemsQuery = parentQuery.GetQueryFilteredFkColumn(pcol, selectedValue);
        }

        // set next descendant list control
        PopulateListControl(i, listItemsQuery);

        // set initial values
        var selectedValueString = filters[i].Column.Table.GetPrimaryKeyString(propertyValues[i]);
        ListItem item = filters[i].ListControl.Items.FindByValue(selectedValueString);
        if (item != null)
            filters[i].ListControl.SelectedValue = selectedValueString;
    }
}

Listing 3 – PopulateAllListControls

/// <summary>
/// Handles the SelectedIndexChanged event of the parentListControls control.
/// </summary>
/// <param name="sender">The source of the event.</param>
/// <param name="e">
/// The <see cref="System.EventArgs"/> instance containing the event data.
/// </param>
/// <summary>
/// Setups the parent list control.
/// </summary>
/// <param name="table">The table.</param>
/// <param name="filterIndex">The parent id.</param>
/// <param name="items">The items.</param>
public void PopulateListControl(int filterIndex, IQueryable items)
{
    // clear the list controls list property
    filters[filterIndex].ListControl.Items.Clear();
    // enable list control
    filters[filterIndex].ListControl.Enabled = true;

    // add unselected value showing the column name
    // [Styles]
    filters[filterIndex].ListControl.Items.Add(
        new ListItem(String.Format("[{0}]",
            filters[filterIndex].Column.DisplayName), NullValueString));

    foreach (var row in items)
    {
        // populate each item with the display string and key value
        filters[filterIndex].ListControl.Items.Add(
            new ListItem(filters[filterIndex].Column.ParentTable.GetDisplayString(row),
            filters[filterIndex].Column.ParentTable.GetPrimaryKeyString(row)));
    }
}

/// <summary>
/// Resets all descendant list controls.
/// </summary>
/// <param name="startFrom">The start from.</param>
private void ResetAllDescendantListControls(int startFrom)
{
    for (int i = startFrom - 1; i >= 0; i--)
    {
        filters[i].ListControl.Items.Clear();
        filters[i].ListControl.Items.Add(new ListItem("----", String.Empty));
        filters[i].ListControl.Enabled = false;
    }
}

Listing 4 – PopulateListControl and ResetAllDescendantListControls

Listing 5 is again virtually the same as the Edit templates but I kept it separate as it is an event handler and may make more sense to keep it in the template.

/// <summary>
/// Handles the SelectedIndexChanged event for each List control,
/// and populates the next list control in the hierarchy.
/// </summary>
/// <param name="sender">The source of the event.</param>
/// <param name="e">
/// The <see cref="System.EventArgs"/> instance containing the event data.
/// </param>
void ListControls_SelectedIndexChanged(object sender, EventArgs e)
{
    // get list control
    var listControl = (ListControl)sender;

    // get the sending list controls id as an int
    var id = ((Control)sender).ID;

    // use regular expression to find list control index
    var regEx = new Regex(@"\d+");
    var parentIndex = int.Parse(regEx.Match(id).Value);

    if (listControl.SelectedValue != NullValueString)
    {
        if (parentIndex > 0)
        {
            // set child index
            var childIndex = parentIndex - 1;

            // get parent table
            var parentTable = filters[childIndex].Column.ParentTable;

            // get query from table
            var query = parentTable.GetQuery(context);

            // get items for list control
            var itemQuery = query.GetQueryFilteredFkColumn(
                filters[parentIndex].Column,
                listControl.SelectedValue);

            // populate list control
            PopulateListControl(childIndex, itemQuery);

            // reset all descendant list controls
            ResetAllDescendantListControls(childIndex);
        }
    }
    else
    {
        // reset all descendant list controls
        ResetAllDescendantListControls(parentIndex);
    }
}

Listing 5 – ListControls_SelectedIndexChanged

Next we replace the DropDownList1_SelectedIndexChanged with ListControl0_SelectedIndexChanged Listing 6 really only a name change to make the code read clearly.

protected void ListControl0_SelectedIndexChanged(object sender, EventArgs e)
{
    OnFilterChanged();
}

Listing 6 – ListControl0_SelectedIndexChanged

Finally we need to change the GetQueryable method to replace DropDownList1 with filters[0].ListControl.

Download

Happy coding

Note: With a few changes around the last two listings you could adapt this to either the old Dynamic Data Futures VS2008 SP1 RTM filters on CodePlex or Josh Heyes’s Dynamic Data Filtering.
