Conditional Row Highlighting in Dynamic Data

There are occasions when you want to highlight a row in the GridView (I usually want this based on a Boolean field) so here’s what you do.

First of all we need some way of telling the column to do this an I usually use an attribute see Listing 1 it have two properties one for the value when we want the CSS class to be applied, and the other the CSS class to apply.

[AttributeUsage(AttributeTargets.Property | AttributeTargets.Field, AllowMultiple = false)]
public class RowHighlightingAttribute : Attribute
    /// <summary>
    /// Initializes a new instance of the <see cref="RowHighlightingAttribute"/> class.
    /// </summary>
    /// <param name="valueWhenTrue">The value when true.</param>
    /// <param name="cssClass">The CSS class.</param>
    public RowHighlightingAttribute(String valueWhenTrue, String cssClass)
        ValueWhenTrue = valueWhenTrue;
        CssClass = cssClass;

    /// <summary>
    /// Gets or sets the value when true.
    /// </summary>
    /// <value>The value when true.</value>
    public String ValueWhenTrue { get; set; }

    /// <summary>
    /// Gets or sets the CSS class.
    /// </summary>
    /// <value>The CSS class.</value>
    public String CssClass { get; set; }

Listing 1 – RowHighlightingAttribute

Next we need a way of applying the CSS class based on the condition, see Listing 2.

/// <summary>
/// Highlights the row.
/// </summary>
/// <param name="fieldTemplate">The field template.</param>
public static void HighlightRow(this FieldTemplateUserControl fieldTemplate)
    // get the attribute
    var rowHighlighting = fieldTemplate.MetadataAttributes.GetAttribute<RowHighlightingAttribute>();
    // make sure the attribute is not null
    if (rowHighlighting != null)
        // get the GridViewRow, note this will not
        // be present in a DetailsView.
        var parentRow = fieldTemplate.GetContainerControl<GridViewRow>();
        if (parentRow != null
            && rowHighlighting.ValueWhenTrue == fieldTemplate.FieldValueString)
            // apply the CSS class appending if a class is already applied.
            if (String.IsNullOrWhiteSpace(parentRow.CssClass))
                parentRow.CssClass += " " + rowHighlighting.CssClass;
                parentRow.CssClass = rowHighlighting.CssClass;

Listing 2 – HighlightRow extension method

Now to add the extension method to a field template, we will apply it to the Boolean read-only field template.

protected override void OnDataBinding(EventArgs e)

    object val = FieldValue;
    if (val != null)
        CheckBox1.Checked = (bool)val;

    // apply highlighting

Listing 3 – Apply highlighting.

For the sample I’ve also added it to the Text.ascx.cs field template.

Adding some attributes

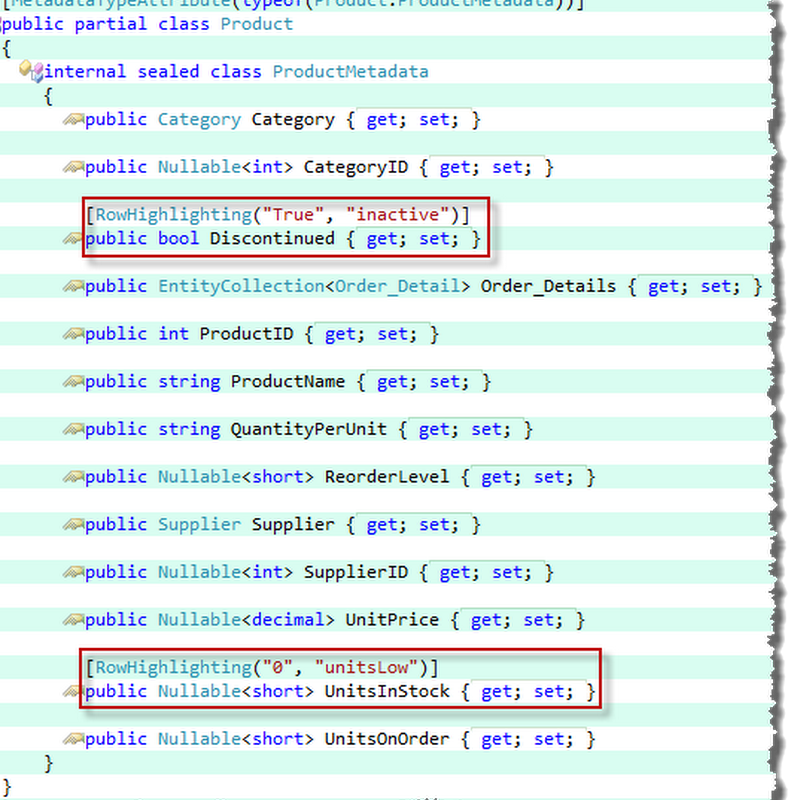

Metadata applied

Figure 1 - Metadata applied

You could also us this technique on other values, but this will do for this sample.

Row Highlighting applied

Figure 2 – Row Highlighting applied.

So you can see with a little bit of work you can add conditional row level highlighting to Dynamic Data.
